Image may not reflect selected features
No Image
Available
Available
TPI

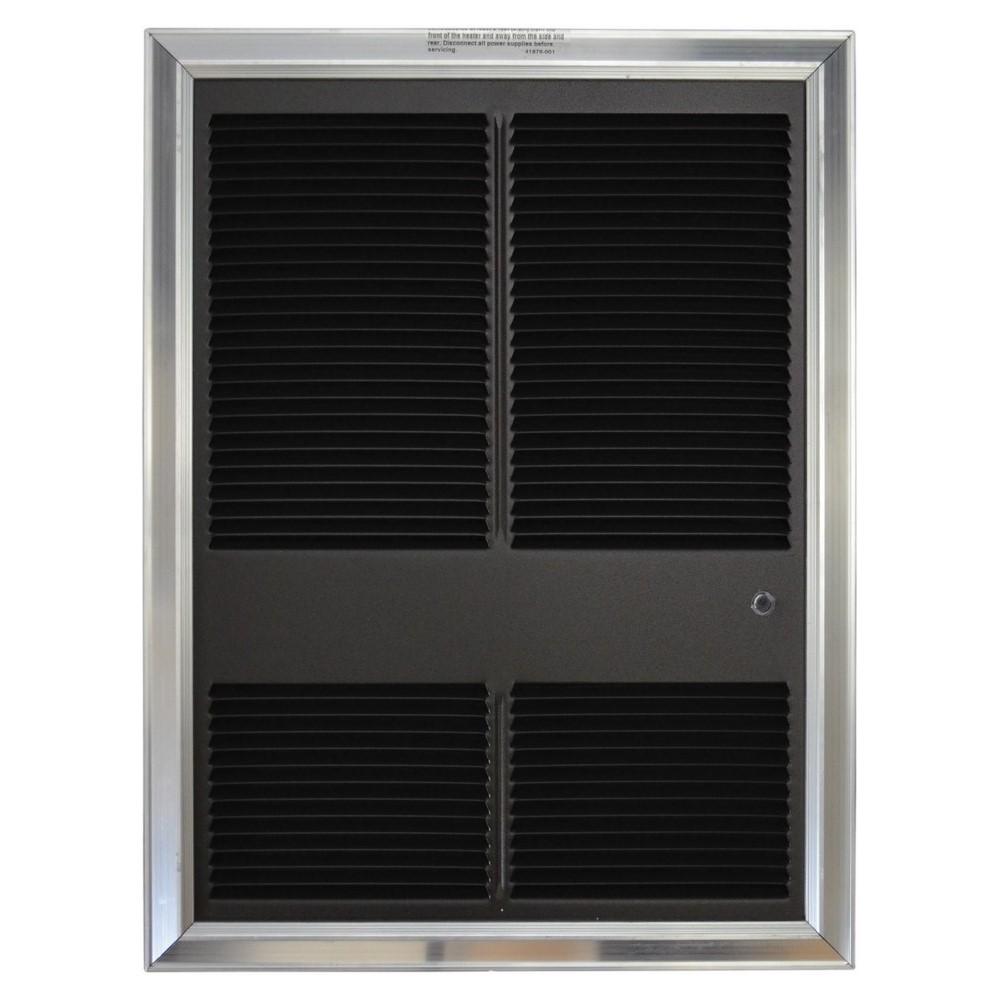

1500W 120V Comm Fan Forced Wall Htr
Part Number: E3323TDRP
UPC: 00686334380881
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Model...
Changes Selections Above Wattage...
Changes Selections Above Voltage Rating...
Changes Selections Above Phase...
Product Overview
Fan Forced Wall Heater, Maximum Operating Temperature- 90 (Thermostat) DEG F 1 PH, 1500 WTT, 120 V, Wall Mounting, Dimensions- 14-3/16 Width X 19-15/16 Height X 4 Depth IN, Steel Housing Material, BTU Rating- 5120, 12.5 AMP
Specifications
Details
Product Height:
7.00"
Product Width:
17.00"
Product Length:
22.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Heating Equipment Parts And Accessories
Application:
Indoor-Commercial/Industrial/Some Residential
Brand Name:
TPI
Country Of Origin:
US
Dimensions:
14-3/16 Width X 19-15/16 Height X 4 Depth IN
Housing Material:
Steel
Maximum Operating Temperature:
90 (Thermostat) DEG F
Model:
E3323TD-RP
Mounting:
Wall
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1 PH
RoHS Compliance:
No
Spec Sheet:
Special Features:
Features: Disconnect Switch;Automatic Fan Delay Circuit;Built-In Single Pole Tamper Proof Thermostat;Automatic Reset Thermal Limit;Manufactured in U.S.A.; Btu Rating: 5120; Amperage Rating: 12.5 AMP; Air Flow: 175 CFM; Finish: Powder Coated; Series: 3320
Standard:
cETLus Listed
Stock Type:
Shelf Stock
Type:
Fan Forced
UNSPSC:
40101809
Voltage Rating:
120 V
Warranty Link:
Wattage:
1500 WTT
Weight:
26.000 L
