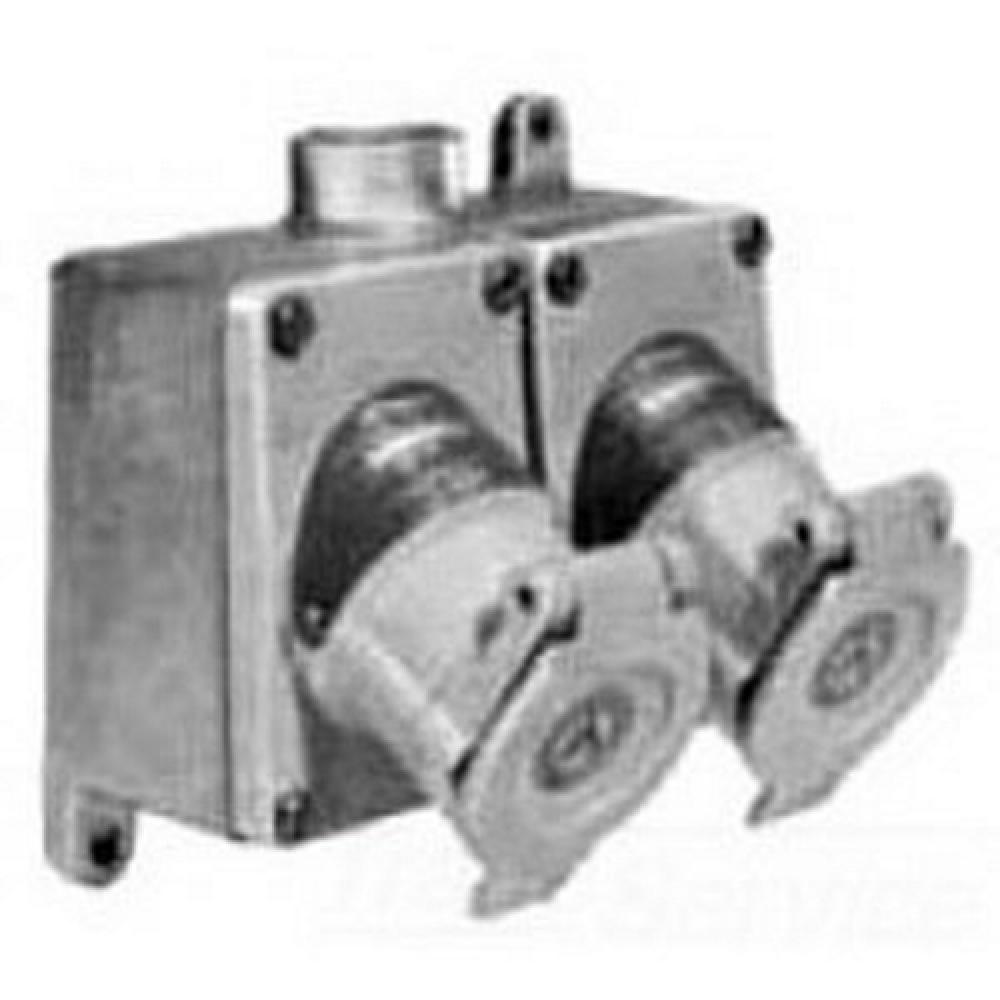

2GANG ULINE RECEPTACLE 250V

Appleton Electric
2GANG ULINE RECEPTACLE 250V

Part Number: EFSC275-20232
UPC: 00781381167796
Call for Price
  • Manufacturer may be Out Of Stock.
250
250
125
EFSC275-20232
EFSC275-20232
EFSC27520232A
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
U-Line 2-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 250 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Malleable Iron Mounting Box, Nem
Specifications
Details
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
20
Application:
For ECP And NCP Mating Plugs
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Malleable Iron Mounting Box
Mounting:
Surface Mount With 3/4 IN Feed-Thru Hub
NEMA Rating:
NEMA 3, 3R
Number Of Poles:
3
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Suitabl
Standard:
Class I, Division 1 And 2 Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 And 2 Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159
Sub Brand:
U-Line
Type:
2-Gang Receptacle With Mounting Box
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Warranty Information
