Appleton Electric

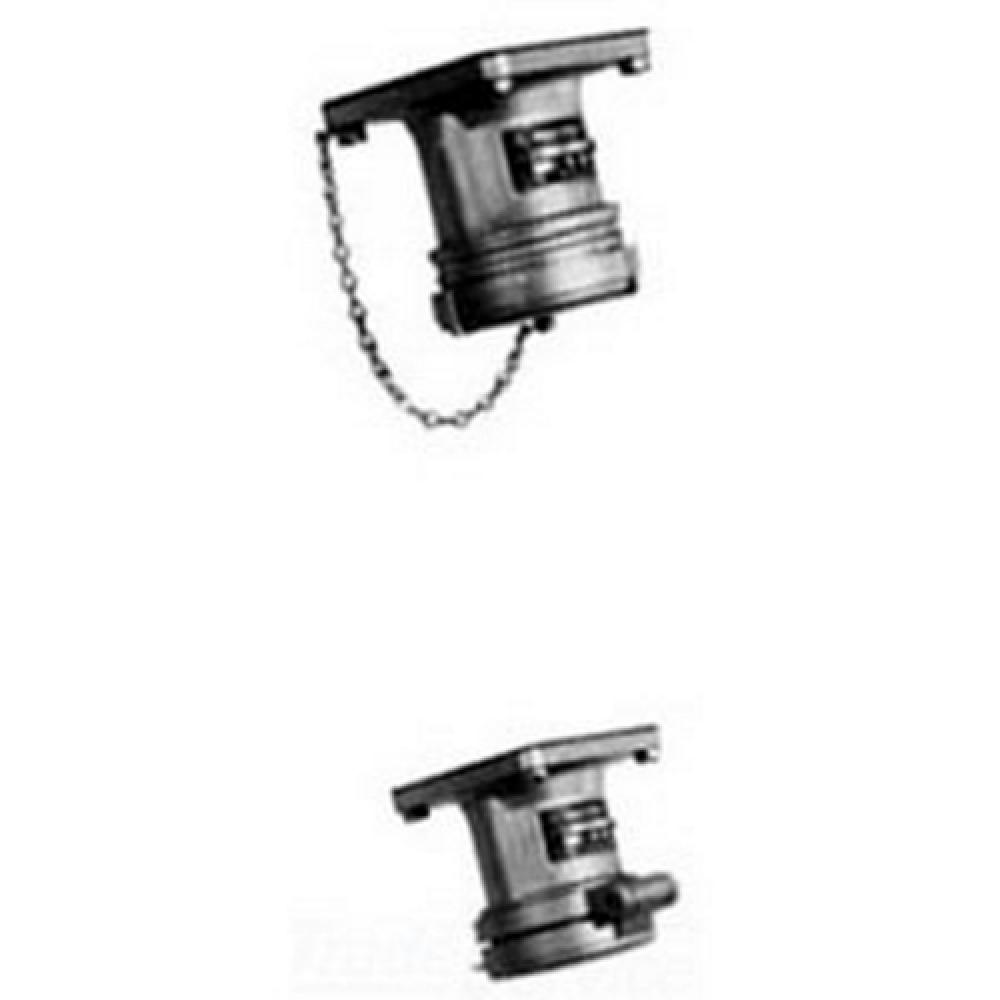

100A RECPT 2PS1 SCR/SPRG CVRS
Part Number: ADR1022
UPC: 00781381186261
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Changes Selections Above Application...
Changes Selections Above Number Of Poles...
Changes Selections Above Number Of Wires...
Changes Selections Above Phase...
Product Overview
Powertite Grounding Style 1 Receptacle, Number Of Poles: 2, Number Of Wires: 2, Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex), Amperage Rating: 100 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 1 PH, Material: Cop
Specifications
Details
Product Height:
4.60"
Product Width:
5.60"
Product Length:
7.00"
Electrical Category:
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
, Receptacle
Amperage Rating:
100
Application:
For ACP1022CD Clamping Ring Plug
Brand Name:
Appleton
Brochure:
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting:
Box
NEMA Rating:
NEMA 3, 3R, 4, 4X
Number Of Poles:
2
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship
Standard:
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Sub Brand:
Powertite
Temperature Rating:
-40 To 107
Type:
Grounding Style 1 Receptacle
UNSPSC:
39121406
Voltage Rating:
600 VAC At 50 - 400 HZ, 250 VDC
Warranty Link:
Weight:
2.990 L
Wire Size:
4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex)
