1/2 IN GNDG BSHG SSCR

Appleton Electric

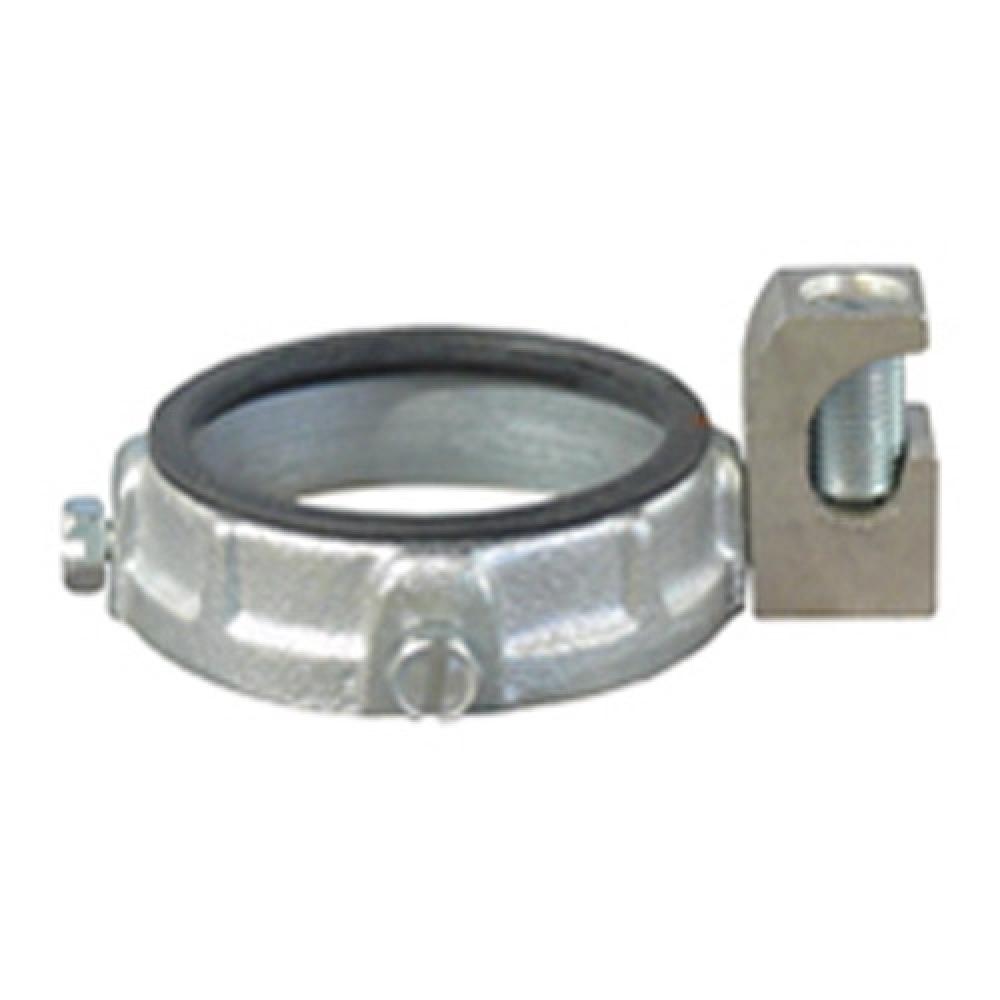

1/2 IN GNDG BSHG SSCR

Part Number: GIB-50LS-4AC
UPC: 00781381091367
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 1/2 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Temperature Rating: 150 DEG C, Dimensions: 0.44 IN Height X 1.19 IN Diameter, Cable Size: 14 AWG Solid - 4 AWG Stranded, Turning Radius: 1.19 IN, Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1, For Use With Threaded Rigid Metal Conduit And IMC
Specifications
Details
Product Height:
0.09"
Product Width:
5.20"
Product Length:
5.40"
Electrical Category:
Electrical Boxes And Enclosures
Electrical Subcategory:
Fittings and Bushings
Application:
For Use With Threaded Rigid Metal Conduit and IMC
Brand Name:
Appleton
Country Of Origin:
MX
Finish:
Zinc Electroplated Body, Tin Plated Lug
Line Drawing Link:
Line Drawing
Material:
Malleable Iron
Order Minimum:
50.000 EA
Order Multiple:
50.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1/2
Spec Sheet:
Spec Link
Special Features:
Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plast
Standard:
UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
Temperature Rating:
150
Type:
Insulated Grounding Bushing With Aluminum Lay-In-Lug
UNSPSC:
39121312
Warranty Link:
Warranty Information
Weight:
.060 L
