1-1/2 IN IND MC CONN ALUM

Appleton Electric
1-1/2 IN IND MC CONN ALUM

Part Number: TMC2-150162A
UPC: 00781381221092
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Size...
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

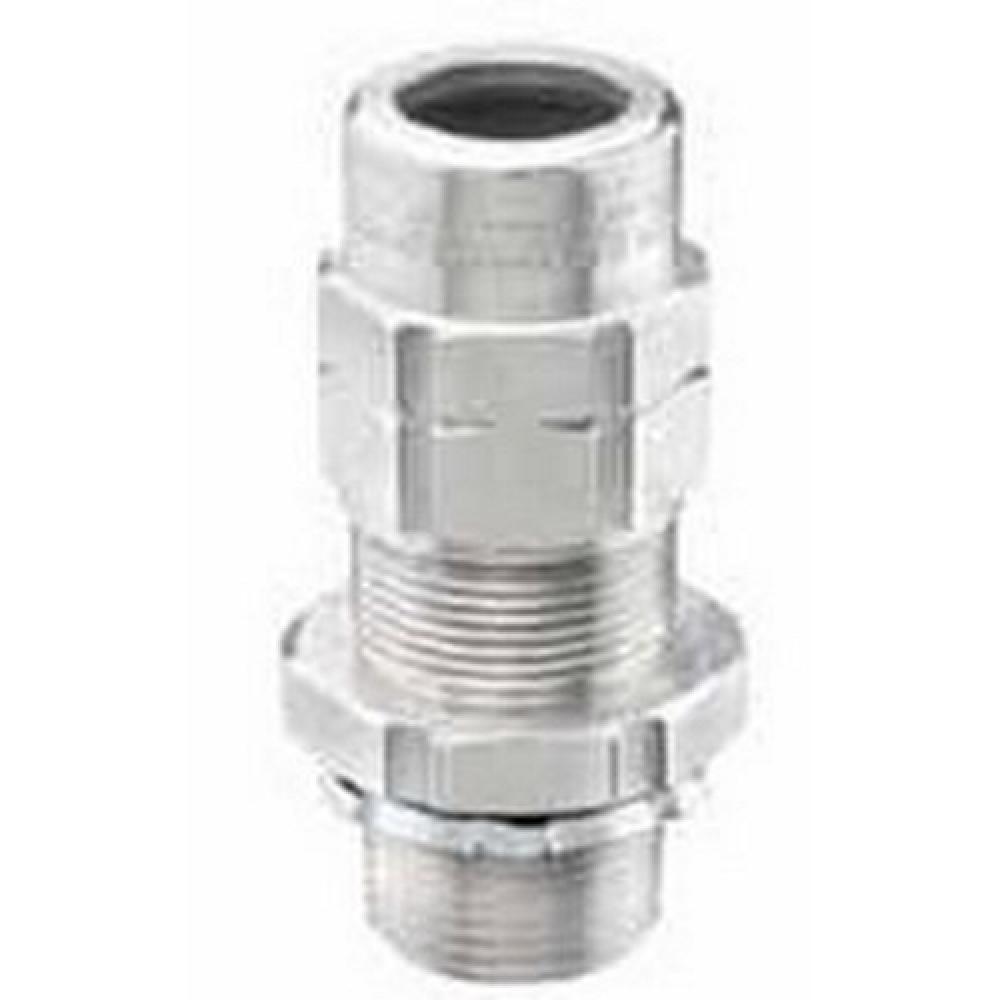

TMC2 Series Cable Gland Connector, Size: 1-1/2 IN, Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Temperature Rating: -60 To 110 DEG C, Connection: NPT, Dimensions: 2.36 IN Across Flat X 2.55 IN Across Corner X
Specifications
Details
Product Height:
2.90"
Product Width:
2.90"
Product Length:
4.80"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable
Brand Name:
Appleton
Connection:
NPT
Country Of Origin:
IN
Enclosure:
IP66
Material:
Copperfree Aluminum
NEMA Rating:
NEMA 4X
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1-1/2
Spec Sheet:
Spec Link
Special Features:
TMC2 connectors provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; Simplified two piece design; Integral o-ring face seal providing - 4X and IP66; Independent
Standard:
Class I, Division 2, Groups A, B, C, D; Class I, Zones 1 And 2, AExe II AEx tA IIC; Class I, Zones 1 And 2, Exe II Ex tA IIC; Class II, Divisions 1 And 2, Groups E, F, G; Class III, Divisions 1 And 2; UL 514B, 2225, CSA C22.2 No. 174, 249506
Stock Type:
Shelf Stock
Temperature Rating:
-60 To 110
Type:
TMC2 Series Cable Gland Connector
UNSPSC:
39121431
Warranty Link:
Warranty Information
Weight:
.800 L
