400A 600V MALE CAM TYPE PLUG GR

Legrand-Pass & Seymour
400A 600V MALE CAM TYPE PLUG GR

Part Number: PLS1820MG
UPC: 00785007255287
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

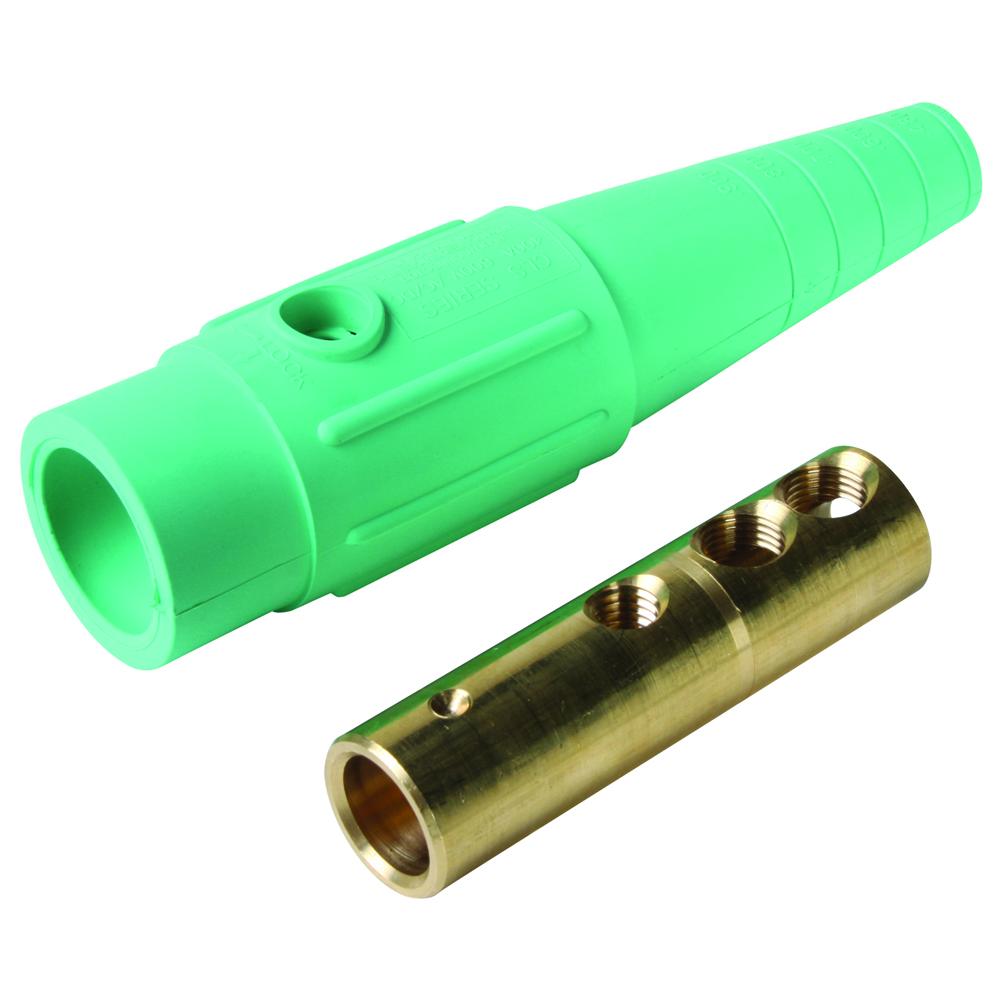

Male Cam Device, Plug, 400amp 600Volt, Cable Size #2 - #2/0, Green
Specifications
Details
Electrical Category:
Fittings and Hardware , Lugs Plugs And Connectors
Electrical Subcategory:
Locking Hardware , Locking Equipment
Amperage Rating:
400
Application:
Commercial/Industrial
Brand Name:
Legrand-Pass & Seymour
Brochure:
Manufacturer Brochure
Color:
Green
Cord Type:
Individual conductor, Type SC, SCE, SCT or W, 75°C, copper wire only
Country Of Origin:
MX
Environmental Conditions:
Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact; Flammability UL94 V2; Enclosure: NEMA Type 3R and 4
Installation Link:
Installation Instructions
Lead Time:
20.000 DW
Material:
Thermoplastic Elastomer
NEMA Rating:
Enclosure: NEMA Type 3R and 4
Number Of Poles:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
6.875
Spec Sheet:
Spec Link
Special Features:
Interchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire. Double set screws for premium wire retention. Locking screw prevents
Standard:
UL, cUL, cCSAus
Stock Type:
Configured on order
Sub Brand:
Pass & Seymour
Type:
Cam-Type Series 18 In-Line Connector Male
UNSPSC:
39121403
Voltage Rating:
600
Warranty Link:
Warranty Information
Wire Size:
#2 - 2/0
