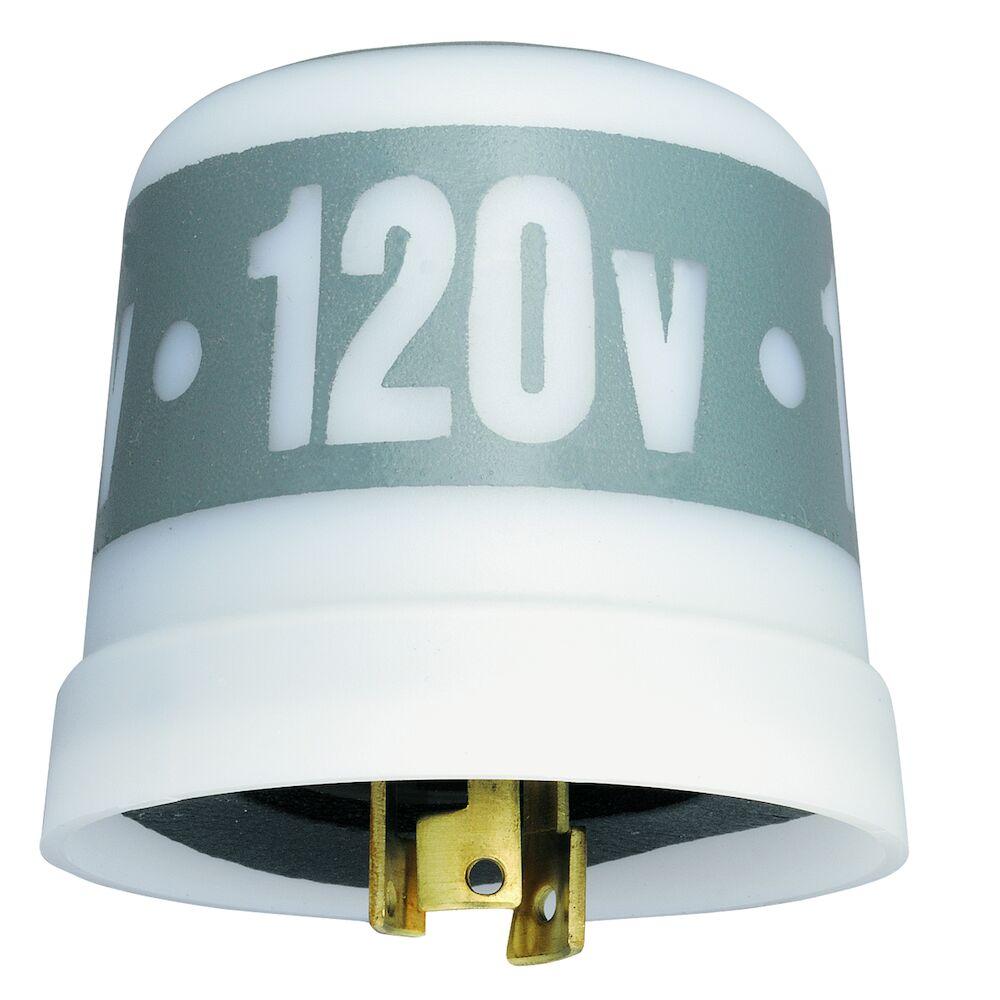

Locking Type Thermal Photocontrol, 120 V, Spark

Intermatic
Locking Type Thermal Photocontrol, 120 V, Spark

Part Number: LC4521LA
UPC: 00078275002661
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Locking Type Thermal Photocontrol, 120 V, Spark Arrestor
Specifications
Details
Product Height:
3.25"
Product Width:
3.10"
Product Length:
3.10"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Electrical Subtype:
Photocontrols
Application:
Dusk to Dawn Lighting Control
Brand Name:
Intermatic
Connection:
Lock Type
Country Of Origin:
MX
Frequency Rating:
50/60
Installation Link:
Installation Instructions
Mounting:
Twistlock Mount
Operating Temperature:
-20 to +104 DEG F, -29 to +40 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Power Consumption:
1
RoHS Compliance:
No
Sensitivity:
0.5 FC (Minimum) ON, 15 FC (Minimum) OFF
Sensor:
Thermal Type Photo Control (Cadmium Sulfide)
Size:
3 DIAMETER X 2-3/4 HEIGHT IN, 7.6 DIAMETER X 7 HEIGHT CM
Source:
Automatic Switching
Spec Sheet:
Spec Link
Special Features:
Features: Cadmium Sulfide Photocell, Polypropylene Housing with UV Protection, 2400 Volt Open Type Spark Gap Arrester
Standard:
UL Recognized, CSA, Title CA 20 Listed, California Title 24 Compliant
Stock Type:
Shelf Stock
Supply Voltage:
120
Type:
TwistLock Photocell
UNSPSC:
39121524
Weight:
.260 L
