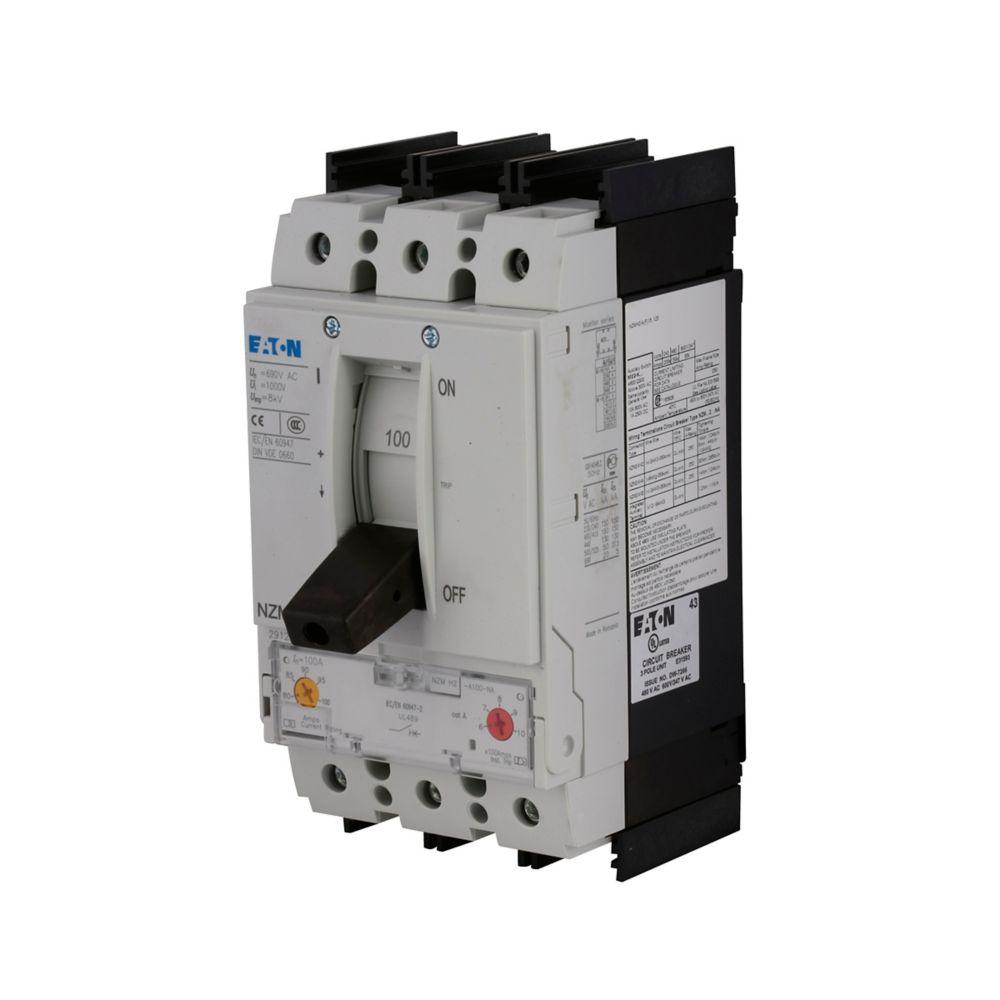

TM MCCB 100A 3P ADJ THERM SET BT

Eaton
TM MCCB 100A 3P ADJ THERM SET BT

Part Number: NZMH2-A100-BT-NA
UPC: 04015081074518
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Eaton Series NZM complete molded case circuit breaker, NZM2-frame, NZMH2, Adj. thermal, adj. magnetic trip, Three-pole, 100A, 690 Vac, 750 Vdc, 85-150 kAIC, Box, Distribution circuit protect., 80-100A, Front frame clamp, 80-100A
Specifications
Details
Product Height:
7.24"
Product Width:
5.86"
Product Length:
5.51"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Breakers
Electrical Subtype:
General Circuit Breaker
Application:
Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
Brand Name:
Eaton
Brochure:
Manufacturer Brochure
Connection:
Front frame clamp
Country Of Origin:
DE
Frame:
NZM2
Interrupt Rating:
85-150 kAIC
Number Of Poles:
Three-pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Standard:
Contact Manufacturer
Stock Type:
Shelf Stock
Tech Bulletin Link:
Technical Bulletin
Trip Type:
Adjustable thermal, adjustable magnetic
Type:
Molded case circuit breaker
UNSPSC:
39121601
Video Clip:
Product Video Clip
Voltage Rating:
690 Vac, 750 Vdc
Weight:
5.460 L
