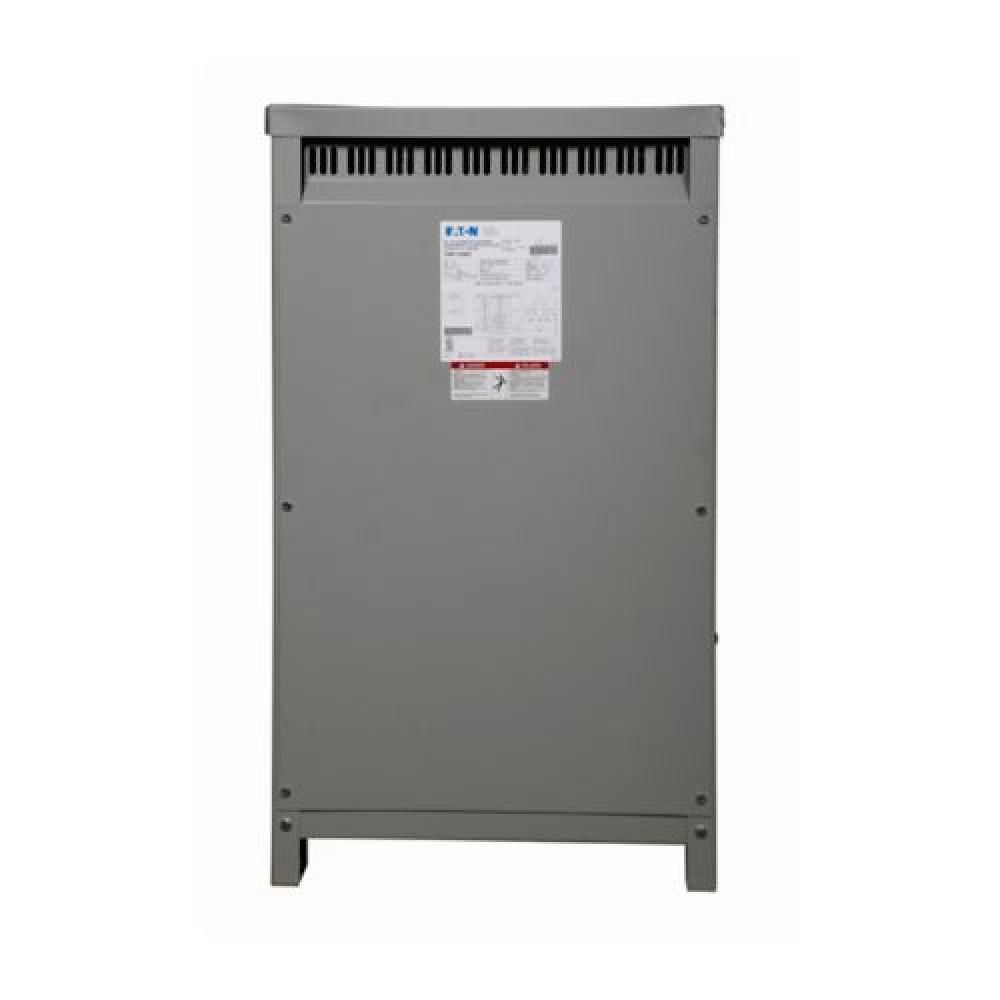

Eaton General purpose ventilated transformer

Eaton
Eaton General purpose ventilated transformer

Part Number: T20P11S37ZEE
UPC: 00786680050343
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
PURGE-General-Purpose Transformer, Ventilated, Dry Type Distribution, DS-3, Single-phase, PV: 240 X 480V, Taps: 1 at +5% FCAN, 2 at -5% FCBN X 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 120/240V, 150°C, 37.5 kVA , Al windings, Frame: 818Z, uses
Specifications
Details
Product Height:
1.00"
Product Width:
1.00"
Product Length:
1.00"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Transformers And Accessories
Electrical Subtype:
Isolation Transformers
Brochure:
Manufacturer Brochure
Country Of Origin:
MX
Design:
DS-3
Frequency Rating:
60 Hz
Height:
37.59
Lead Time:
25.000 DW
Length:
20.36
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Primary Voltage:
240 X 480V
RoHS Compliance:
Contact Manufacturer
Secondary Voltage:
120/240V
Spec Sheet:
Spec Link
Standard:
UL Listed;NEMA TP-1 Compliant
Sub Brand:
None
Tech Bulletin Link:
Technical Bulletin
Temperature Rating:
150°C
Type:
Dry Type Distribution Transformer
UNSPSC:
39121029
Width:
22.89
