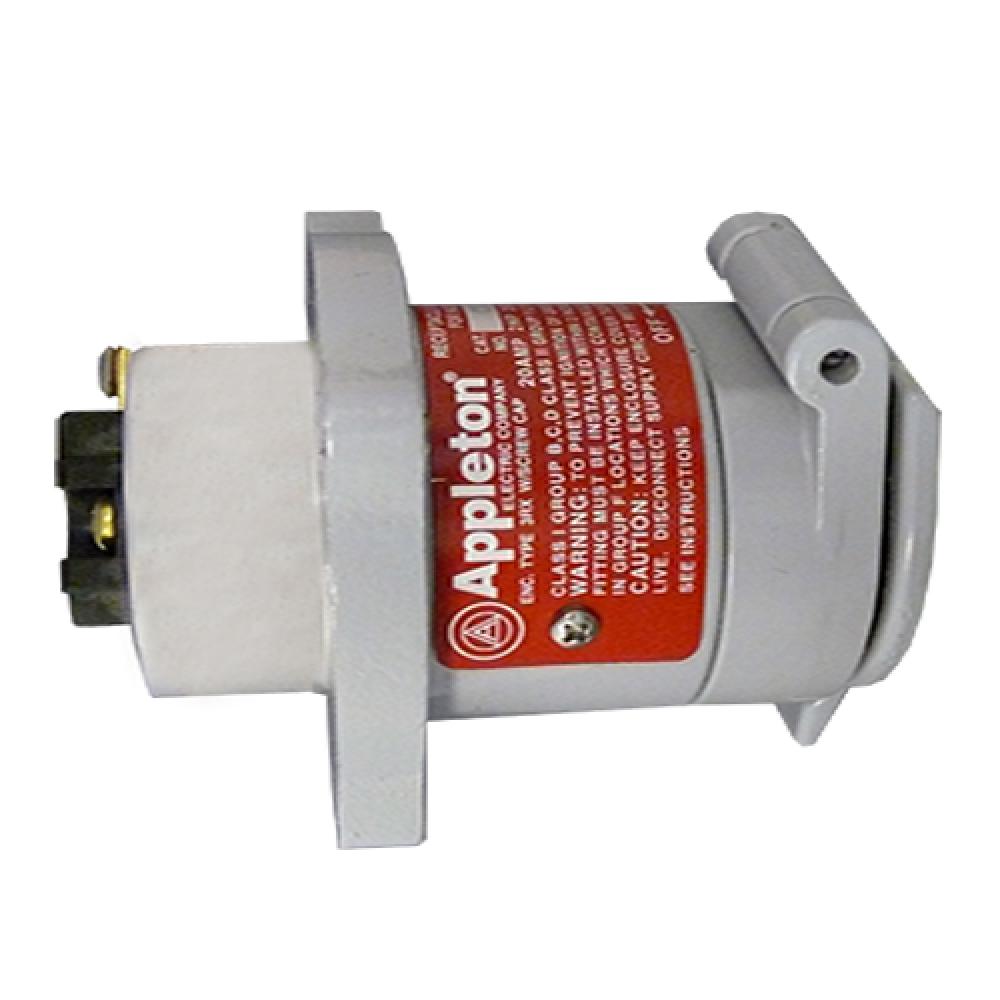

COMPLETE RECEPTACLE HOUSING

Appleton Electric
COMPLETE RECEPTACLE HOUSING

Part Number: CPSR-23
UPC: 00781381203258
Call for Price
  • Manufacturer may be Out Of Stock.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Appleton CPS Series Replacement Receptacle, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 120 - 240 VAC, 24 VDC, Material: Copperfree (Less Than 4/10 Of 1 PCT) Aluminum Cover, Nema Rating: NEMA 3RX, 7BCD, Mountin
Specifications
Details
Product Height:
4.80"
Product Width:
5.70"
Product Length:
7.50"
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
20
Application:
For CPP-2023 Plug
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (Less Than 4/10 Of 1 PCT) Aluminum Cover
Mounting:
Box
NEMA Rating:
NEMA 3RX, 7BCD
Number Of Poles:
3
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Explosionproof, dead-front safety construction; Factory sealed: external seals not required; CPS series receptacles are supplied with pressure terminal connectors; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressor
Standard:
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; UL Standard: UL 1010 (UL 1203) UL Listed: E10784, E81751; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 159; CSA Certified: 038644
Type:
CPS Series Replacement Receptacle
UNSPSC:
39121406
Voltage Rating:
120 - 240 VAC, 24 VDC
Warranty Link:
Warranty Information
Weight:
1.580 L
