60A PLUG INTERIOR ASSY 4P S2

Appleton Electric

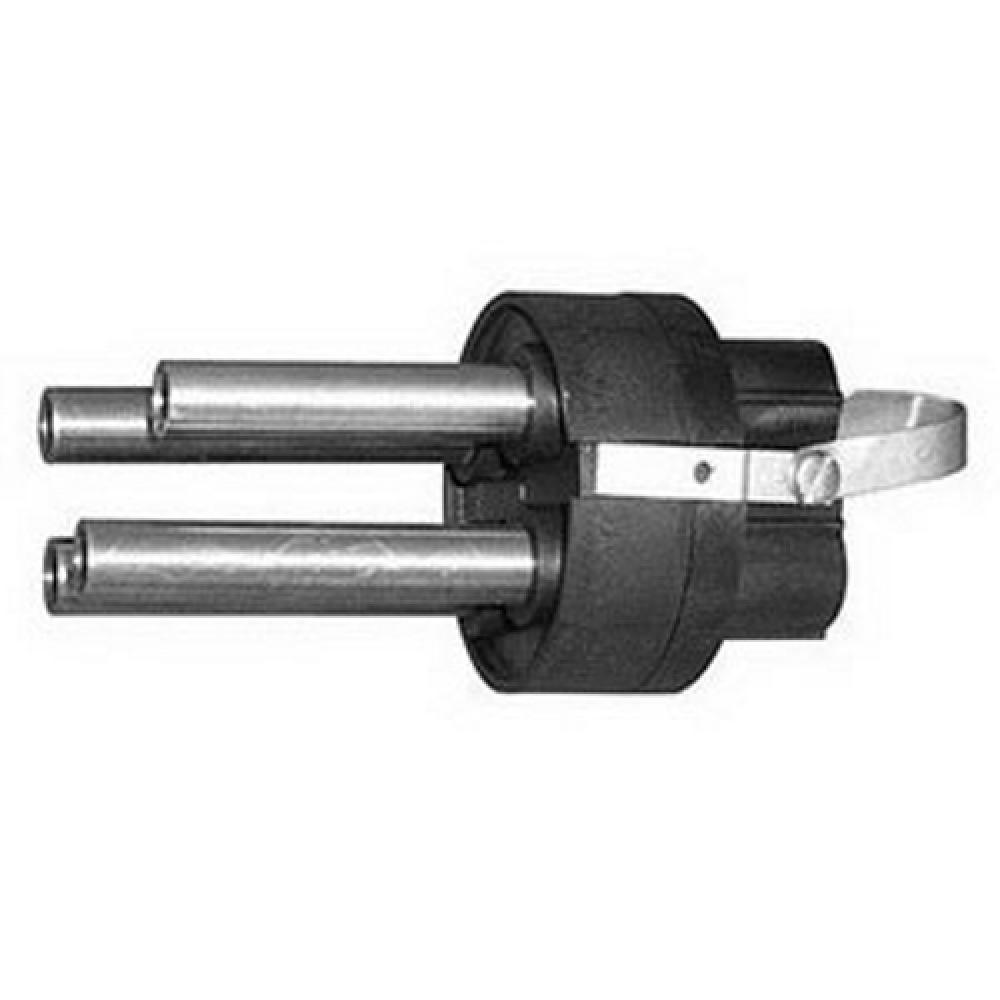

60A PLUG INTERIOR ASSY 4P S2

Part Number: API6034
UPC: 00781381166010
Call for Price
  • Manufacturer availability unknown.
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Powertite Grounding Style 2 Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree
Specifications
Details
Product Height:
4.70"
Product Width:
4.00"
Product Length:
4.10"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
60
Application:
For ARI-6034 Receptacle
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Country Of Origin:
MX
Environmental Conditions:
Temperature Rating: -40 To 107 DEG C
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Number Of Poles:
4
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and
Standard:
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Stock Type:
Shelf Stock
Sub Brand:
Powertite
Type:
Grounding Style 2 Plug
UNSPSC:
39121402
Voltage Rating:
600 VAC At 50 - 400 HZ, 250 VDC
Warranty Link:
Warranty Information
Weight:
.650 L
Wire Size:
6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
